Common initial specifications and dimensions: 595 * 595 * 46/21/10mm, 495 * 495 * 46/21/10mm, 610 * 610 * 46/21/10mm, 295x595x46mm, customizable

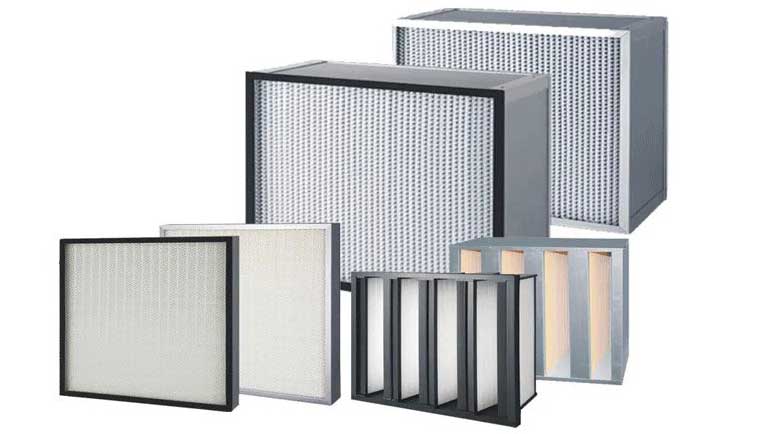

Medium efficiency air filter, also known as bag type medium efficiency filter, has two common types of outer frame materials: galvanized frame and aluminum profile. Non woven fabric or glass fiber is used as a filter bag, with a particle size of 1-5um. It is usually used in ventilation systems with high air volume, and has the characteristics of large dust capacity and good filtering effect. Common bag filters are divided into F5, F6, F7, F8, and F9.

Common specifications and sizes: 595 × five hundred and ninety-five × 381-600 × 21-46 × 6b, 595 × four hundred and ninety-five × 381-600 × 21-46 × 6b, 295 × five hundred and ninety-five × 381-600 × 21-46 × 3b Customizable

The specifications of high-efficiency air filters are relatively complex, divided into high-efficiency air filters with partitions, high-efficiency air filters without partitions, and high-efficiency filters with high air volume. The material of the high-efficiency filter element with partitions is further divided into aluminum partitions and paper partitions. This is the difference in filter material, but the efficiency can filter 0.1~0.3 μ Dust particles above m.

Common specification categories: 320 * 320 * 220mm 484 * 484 * 220mm 595 * 595 * 220mm 610 * 610 * 220mm 630 * 630 * 220mm 610 * 610mm. Customizable sizes are available.

Manufacturer specifications for high-efficiency filters without partitions: 595 * 595 * 90/80/65/50/45mm, 295 * 595 * 90/80/65/50/45mm, 630 * 630 * 90/80/65/50/45mm, 610 * 610 * 90/80/65/50/45mm.
