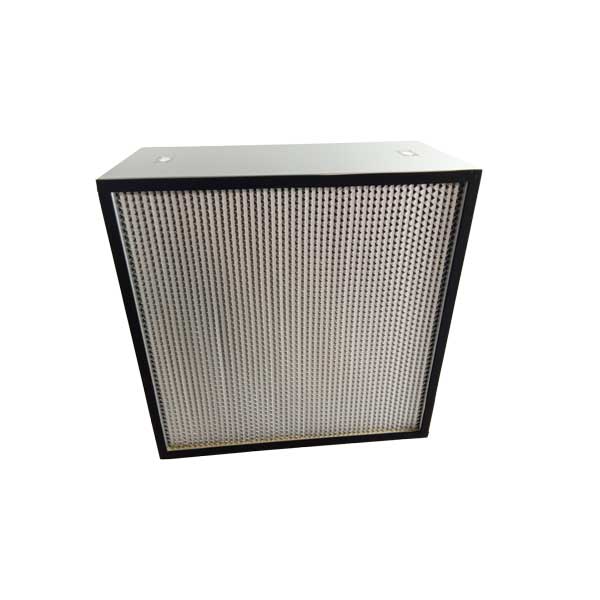

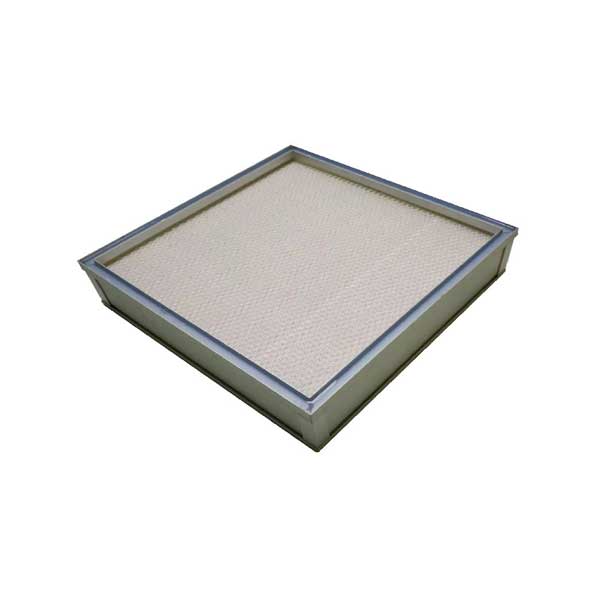

High efficiency filter
3 efficiencies available on 0.3 micron size particles: 95%, 99.97% and 99.99%
Standard and high capacity models available
Frame options: particle board, galvanized steel, aluminum, and stainless steel
Five frame styles: Box Style, Double Turned Flange (DTF), Gel Seal, single header or double header
Standard models can be utilized up to 220ºF, and High Temperature operate up to 500ºF
All filters come standard with a Neoprene gasket for a leak resistant seal
AIDA HEPA filters are designed to meet the highest level of filtration needed in application such as: pharmaceutical, hospital, electronic component manufacturing, aerospace, food processing and all facilities that must have HEPA filtration.
Advantage
HEPA Filter used as the final filters of purification system and as some partial purification equipments and clean room purification equipments,Used in premium class purifying equipment;
Low resistance;high dust holding capacity;stable air velocity;
HEPA Filter is available in efficiencies of 99.95% to 99.999% on 0.3 micron particle
Dimensions and parameters
Model | Dimensions (mm) W×H×D | Rated air flow m3/h |
Initial resistance pa |
Efficiency % | Material | |||
Media | Separator | Sealant | Frame | |||||
AD-HEPA | 320*320*220 484*484*220 610*610*150 820*600*150 630*630*220 968*484*220 945*630*220 1260*630*220 | 400 1000 1000 1200 1500 2000 2200 3000 |
<220
|
>99.99 Sodium flame |
Fiberglass paper |
Aluminum foil; sized paper | Polyurethane Rubber PU |
Galvanized steel Frame |
